| model |
HSO323SJ |
| Size（mm） |
3.2*2.5*1.1mm |
| temperature（℃） |
-10°C～+70°C |
| Frequency Range |
25~212.5MHz |
| PDF |
PDF |
|
|

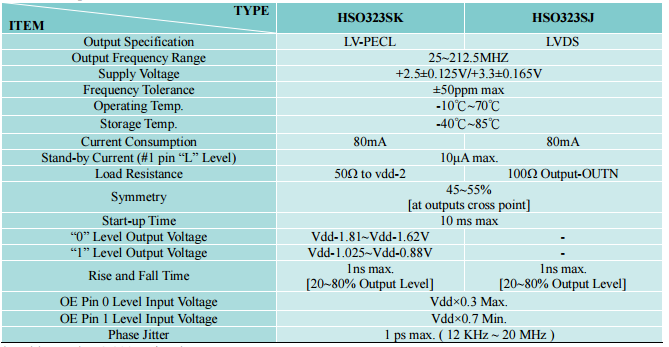

specification |
Low supply voltage (2.5V or 3.3V) and wide
Frequency range (25MHz to 212.5mhz).
Low voltage PECL and LVDS output options.
Excellent phase noise and jitter max.1ps integration
12 kHz ~ 20 MHz.
Three state function can be used.
Ideal optical fiber communication applications
Fiber to the user (FTTH) and SONET / SDH application server, fchba,
Fibre channel, Gigabit Ethernet and serial
|
|
|
|
|
